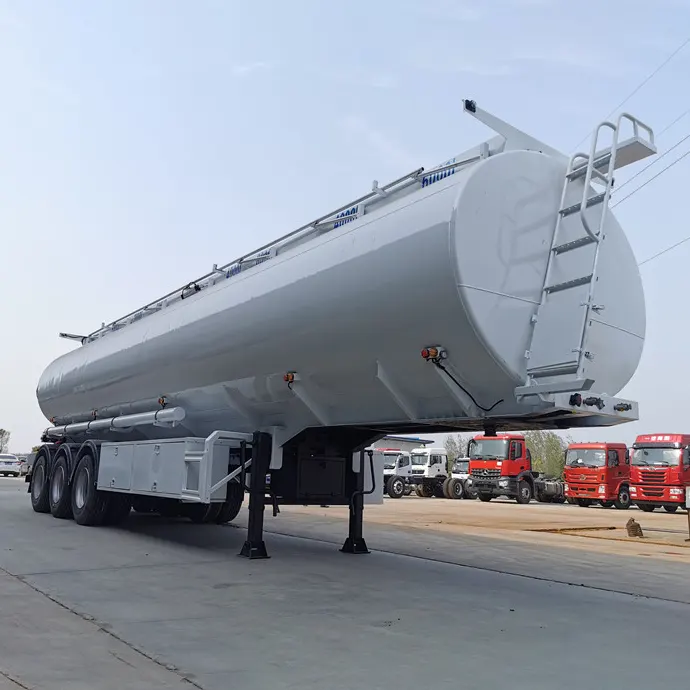

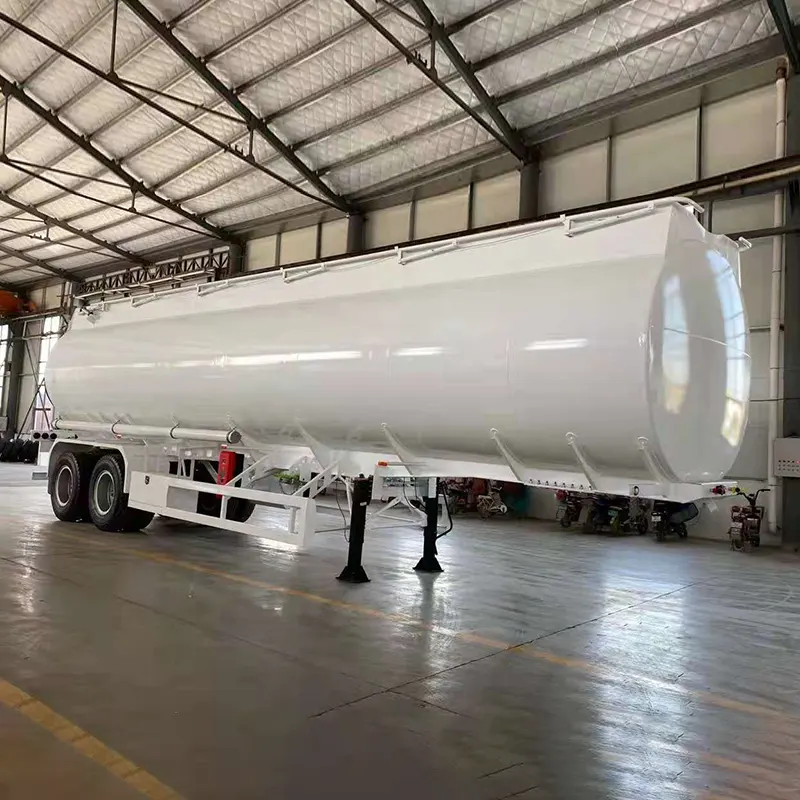

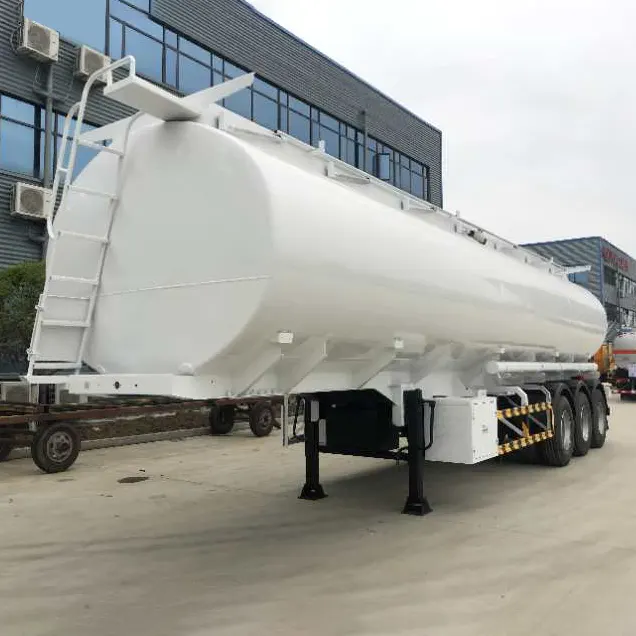

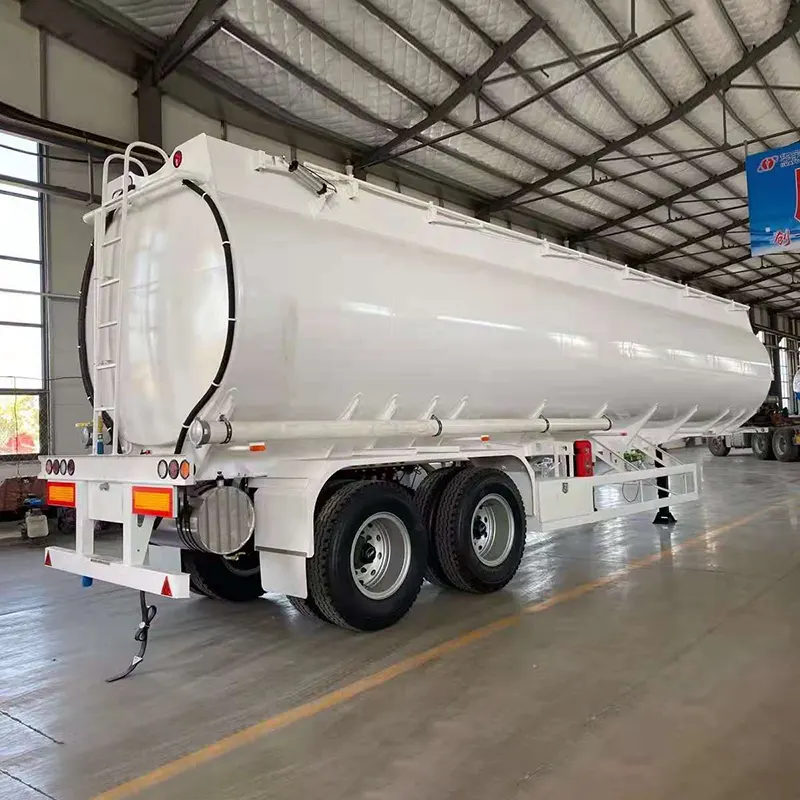

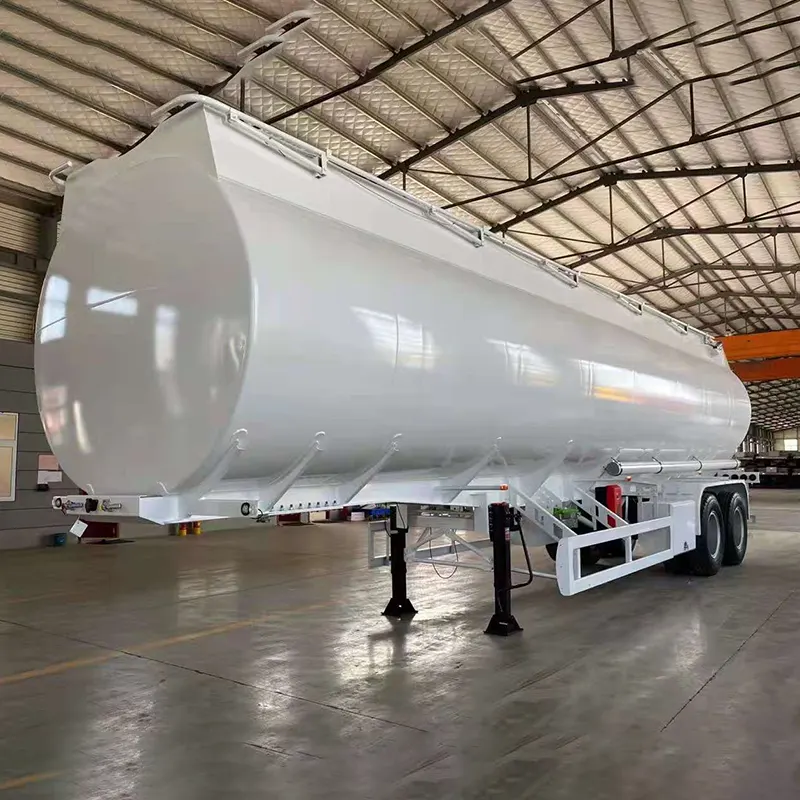

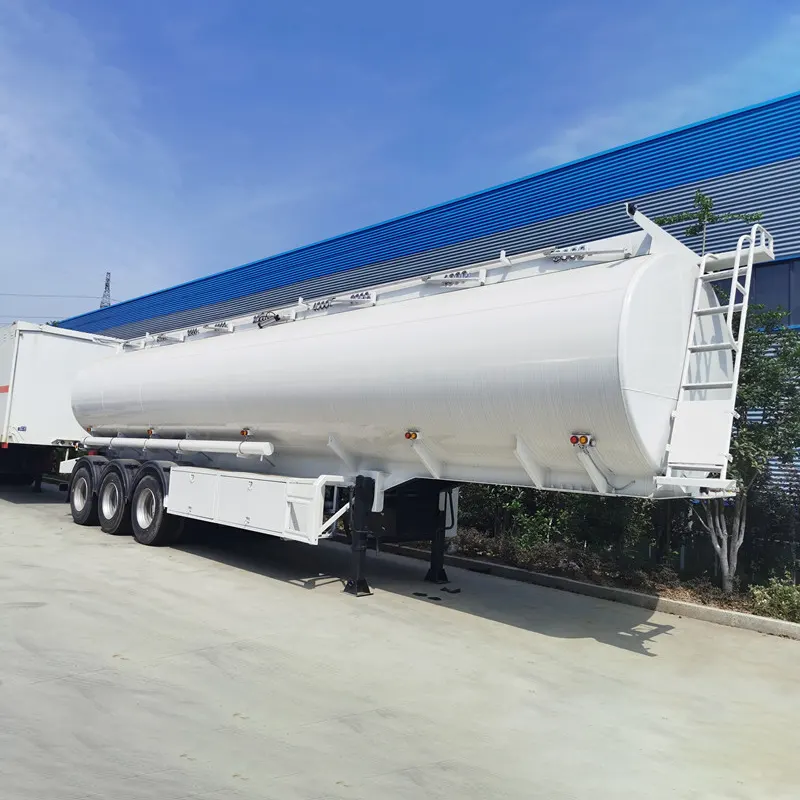

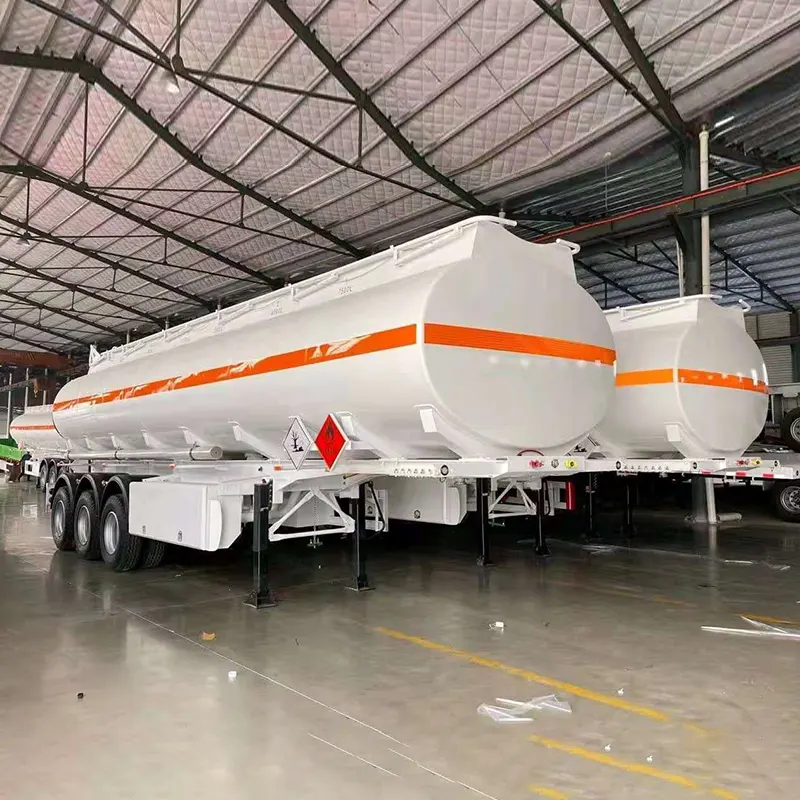

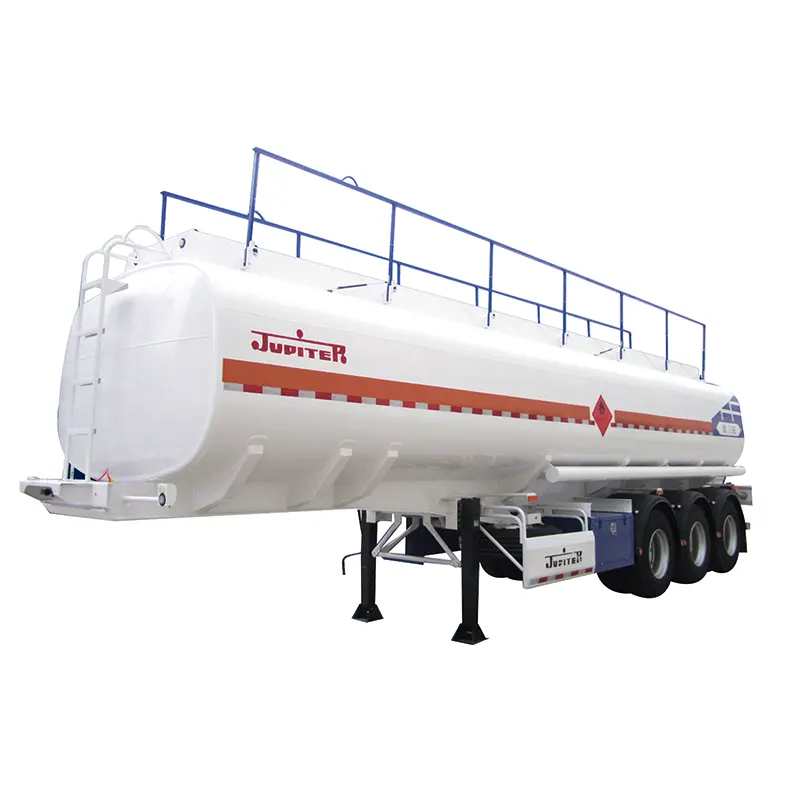

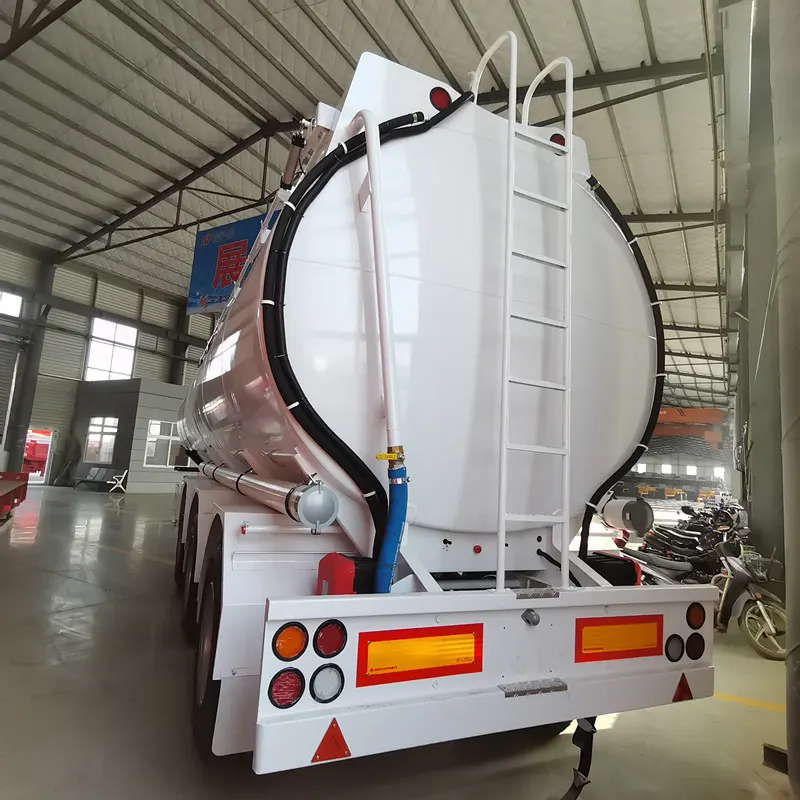

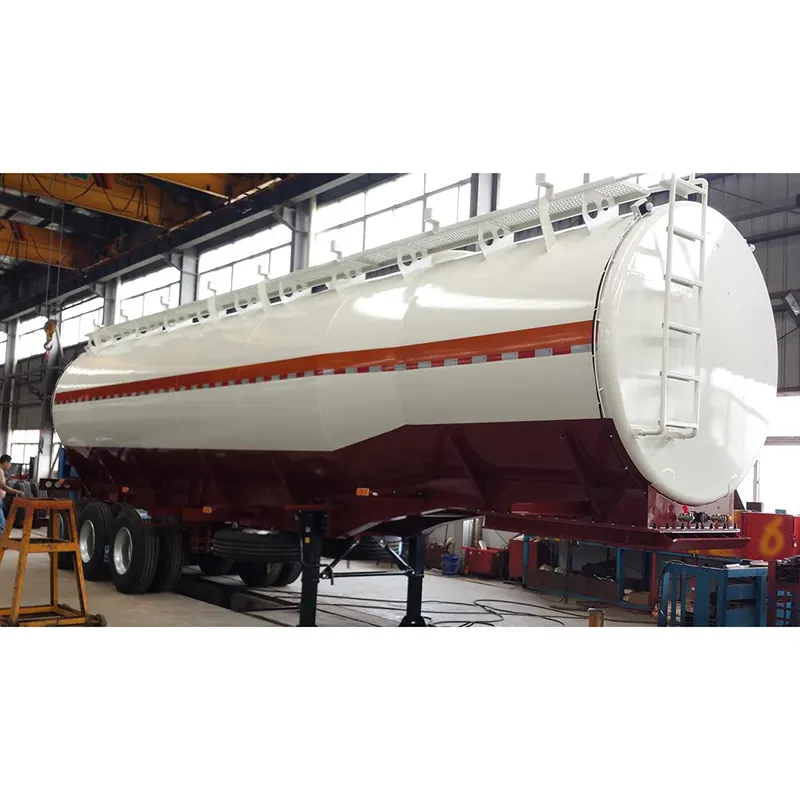

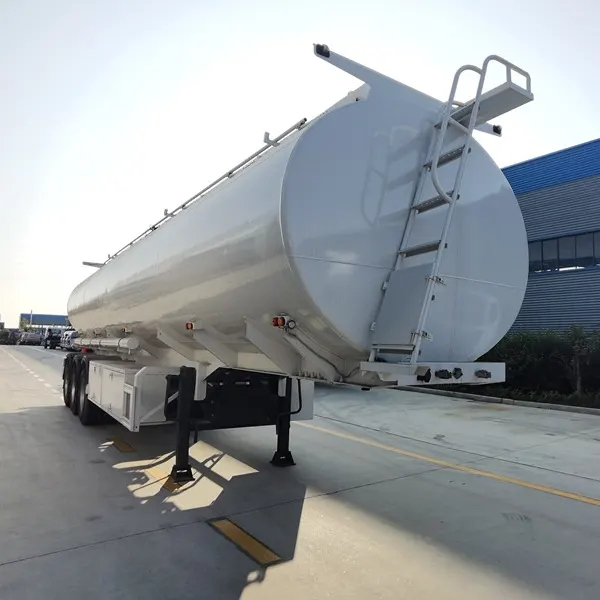

40000l Carbon Steel Oil Tanker Semi trailers with 4 Compartments

Exemplar:

JPT9405GYY

Dimensiones:

Longitudo;

11,800mm

Latitudo:

2,500mm

Height:

3,860mm

Kingpin Location:

950mm e facie frontis anterioris

Axem spacer:

6,600mm 1,310mm 1,310mm

Apparatus portum Location:

2,500mm a centro ad portum calces kingpin

Pondus:

Payload:

40,000Kg

Tare pondus:

Proxime. 11,500Kg.

G.V.W.R:

Proxime. 51,500Kg

Lacus:

Magnitudo:

40,000L 5% Vapor

Loculamentum:

9 (6-4-6-4-2-6-2-6-4)

Lacus Corpus

Chalybe

Compartment Plate:

Chalybe

Design Latin:

Recta Cylindrica lacus.

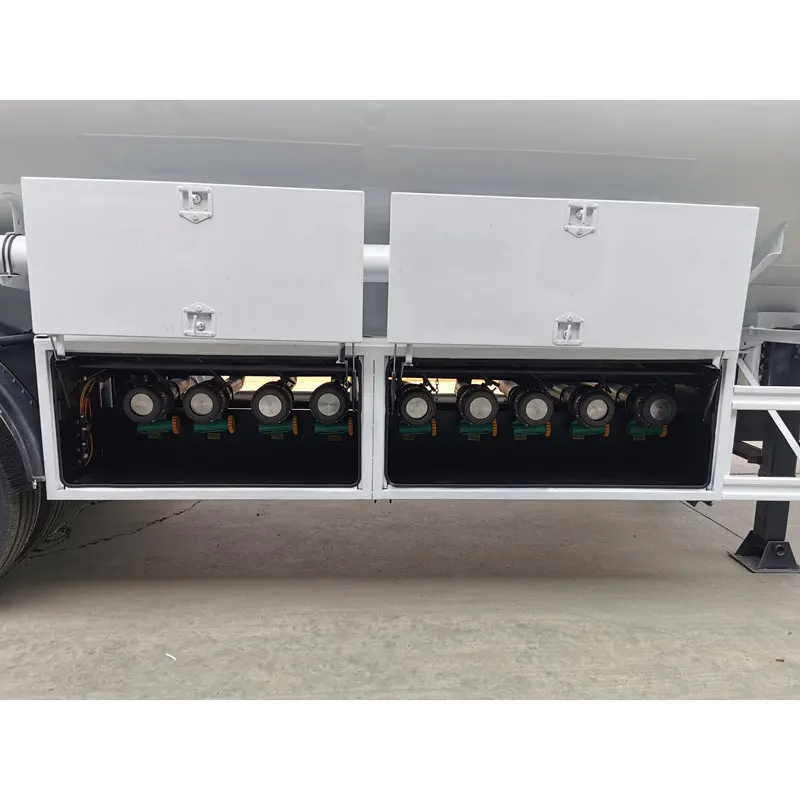

Bottom Salutis Valvae:

JIALONG, 9 Pcs. Valvae pneumaticae subitis per cellula - EURO; Una 4"x3" Gravitatis adaptor visui vitrei per cellula; Una 4" API Valvae et pulvis operculum per cellula

API Cap:

JIALONG 9 Pcs.

Compositum SWITCH:

JIALONG, Air Operated, 1 Sets

Subitis Switch:

Factory Latin, with cover box, 2 Pcs.

Dimittite Valvae:

4", Valvulae solvendae rectanguli sunt ad 5 gradus circiter deorsum.

Dimittite Pipe:

API De reductione Connector:

3"

Dimittite Hose:

3"

Manhole:

JIALONG, 20inches, Aluminium, 9 pcs., with Anti- Theft design.

Indicatores capacitatis:

Factory Latin, IX Pcs.

Oleum Aquae Separator:

Factory Latin, 1 Pc.

Pressura opus:

0.2 Mpa

Pressura test:

0.3 Mpa

Latin welding:

Omnes glutino agendae sunt per vexillum nationale idonei welder applicabile. X-Ray tenendo.

Pictura:

Iaculatum sonum SA 2.5 ante applicationem primarii;

Cursus Apparatus:

Kingpin:

JOST, KZ1012-50, 2 pollices Bolted Type

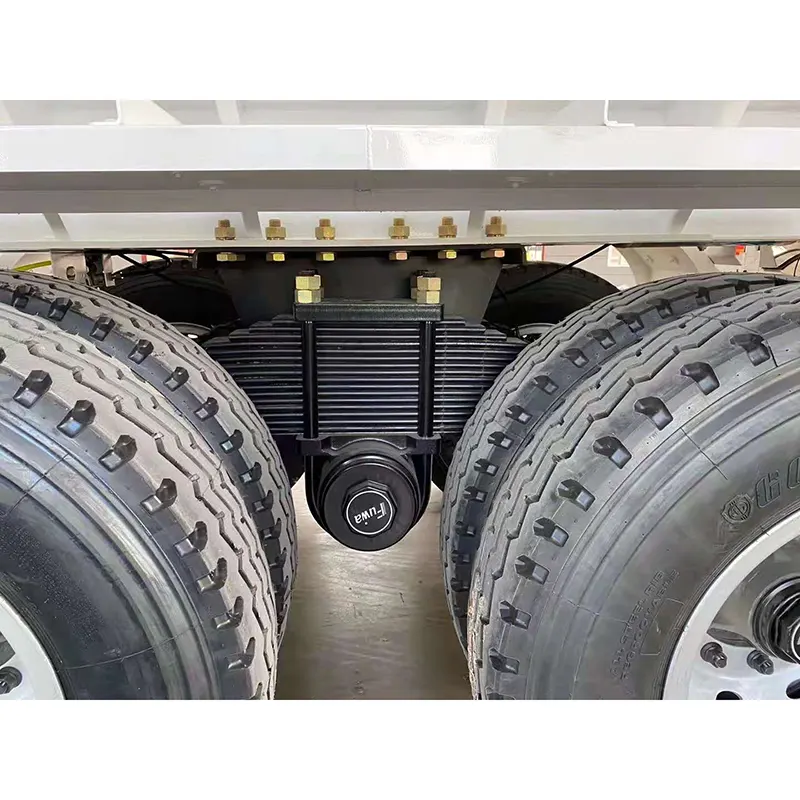

Suspensio:

FUWA

Axem:

FUWA 150x150 Square Tigno, 3Pcs

Ratio fregit:

Dual line Pneumatica Brake, cum Hose

ABS Ratio:

4S/2M

Cubiculum fregit:

T30/30 Spring Brake System in II Axles

Air lacus:

50L, 2Pcs.

Nullam Valve:

WABCO BRAND

Rim:

9.0-22.5;

Tyro:

AEOLUS 12R22.5, 14 Pcs. (Inclusa II parce fatigat)

Portum calces:

JOST

Systema electricum:

Voltage:

24V

Receptaculum:

7 Via Socket

Lucerna ante titulum:

DUXERIT Lumina, inclusa Lucerna Fronte, Latus Venalicium Lucerna, Turn Signum Lucerna, Tergo Lucerna. Funem electricam munitum a PVC aquaeductu in tabula principalis.

Reflector:

Triangulus Reflector, Red Color

Wiring:

FUMIFICUS NO FUMIFICUS INTRA L PEDES

Accessories:

Communia linea valvae fungi:

Fistula carbonis Steel cum 4"

Ignis Exstinctoris:

10 Reg. Type, 2 Sets.

Limus Cohortis:

Purgamentum custodiae luto cum penicillo

Walkway:

flavus

Handrail:

800mm Height, Pneumatica Controlling

Rota Stopper:

2 Pcs.

Parce Rota Portitoribus:

Q345, 2 Pcs.

Fender:

Black Plastic Type, with Peniculus, 6 Pcs.

Rail:

Pneumatica Control Hand Rail, Utrimque, Aluminium Type

Instrumentum Box:

800mm Longitudo, 2 Pcs.

Fistula:

Una pars 4" Diameter* 6m longitudinis fistulae singulae piscinae, usui emptoris.

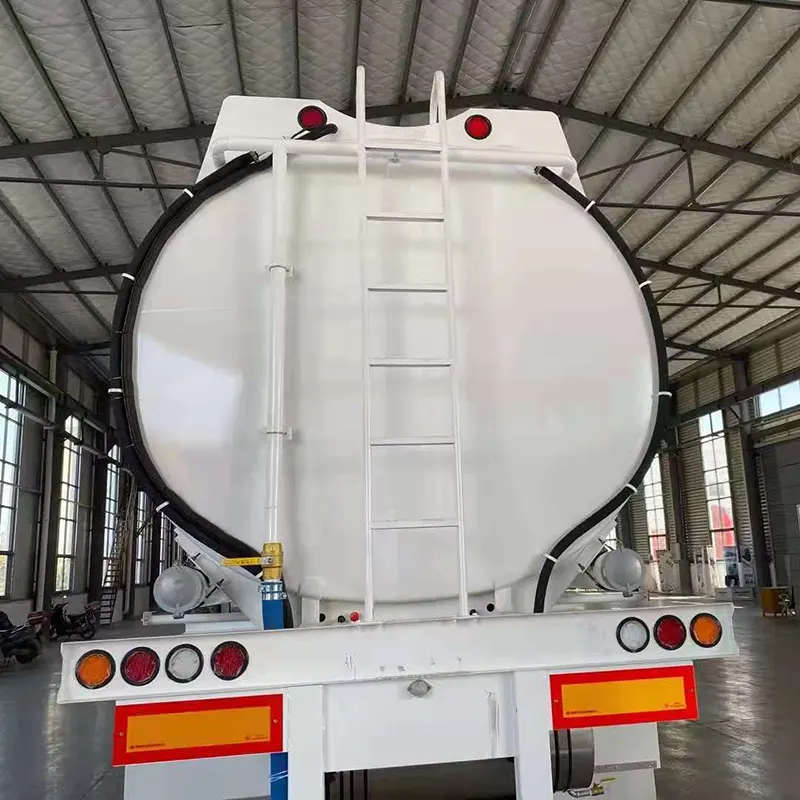

Scala:

Carbon Steel Type,

Bumper:
