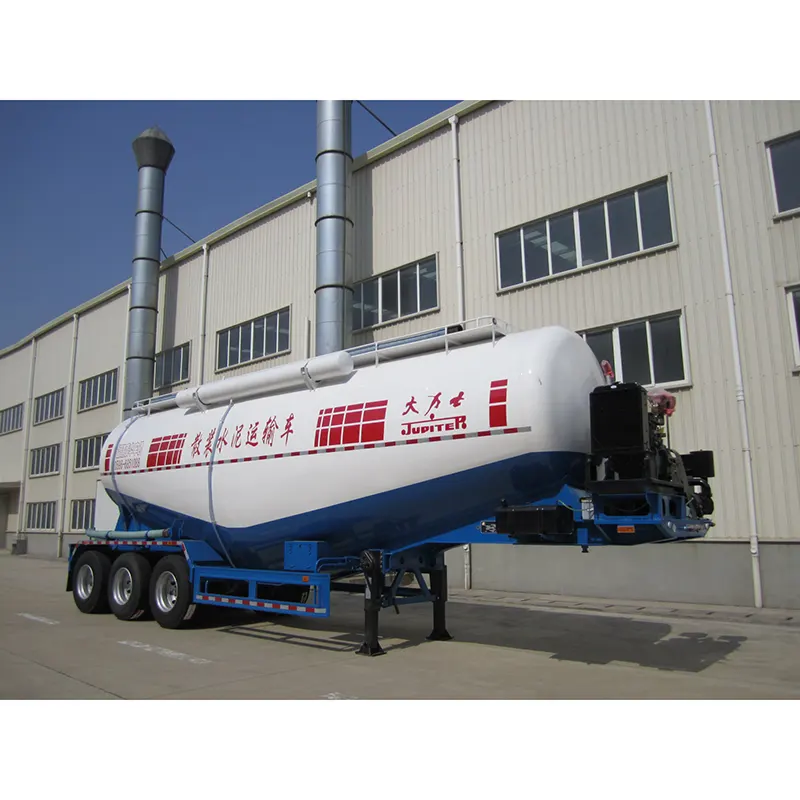

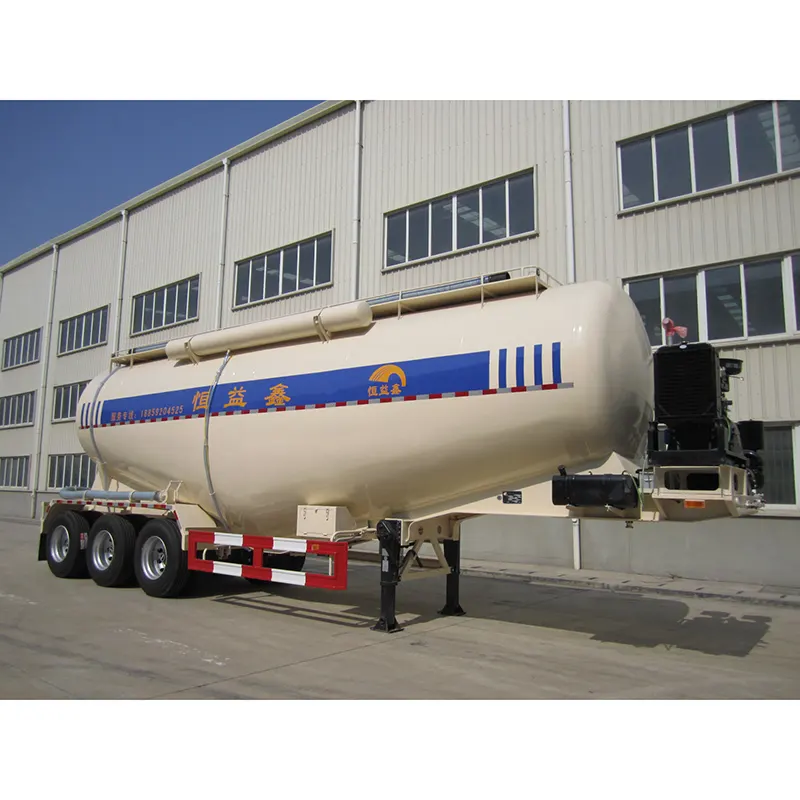

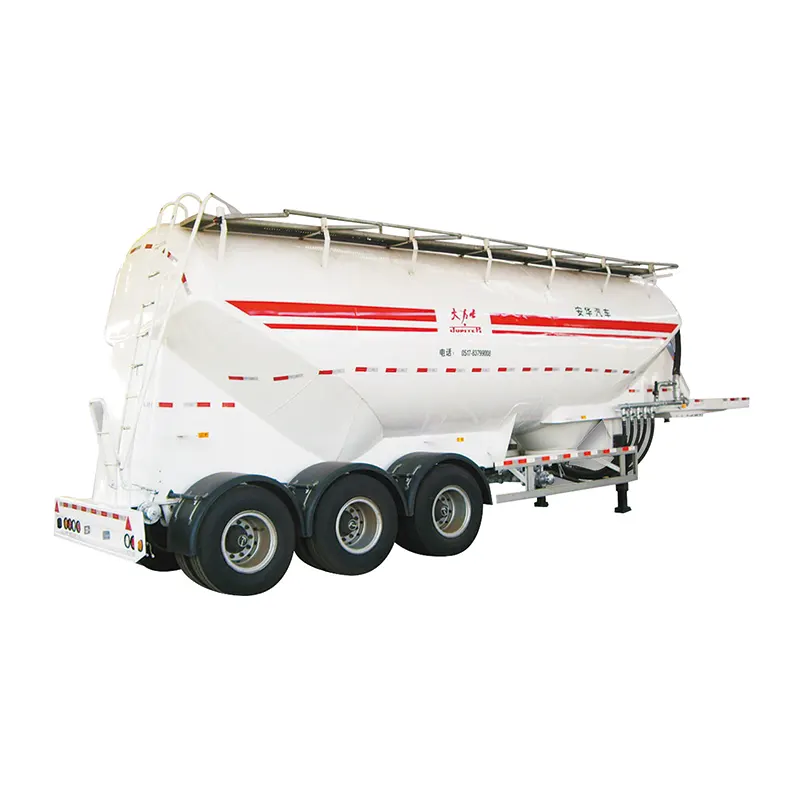

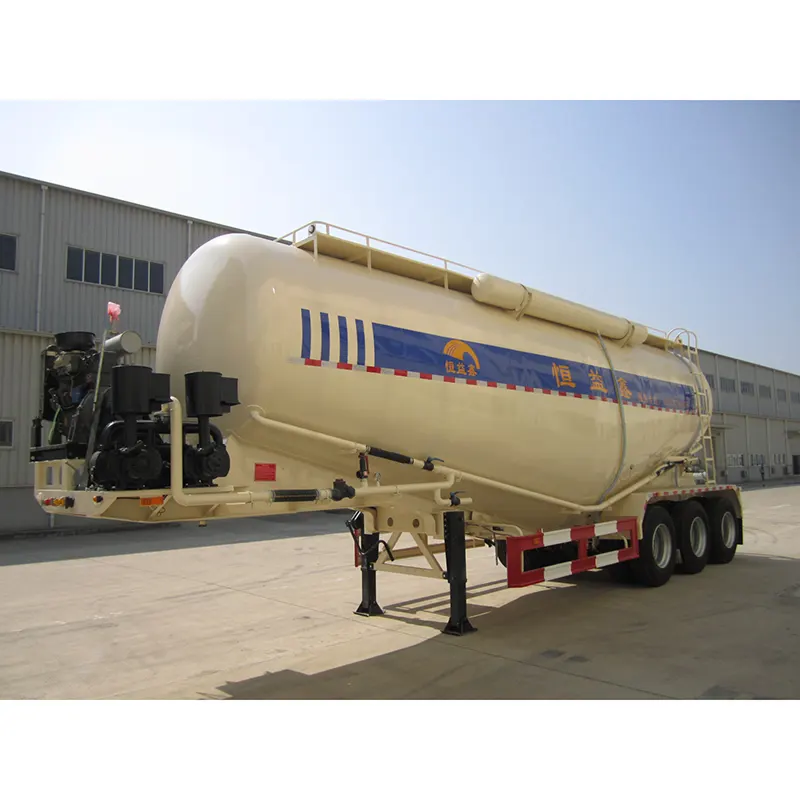

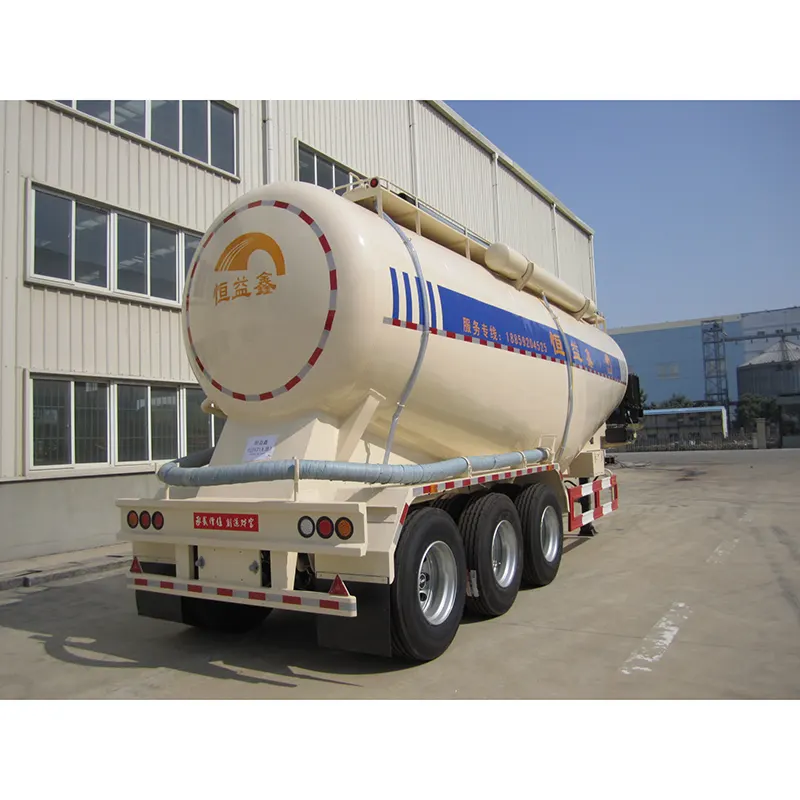

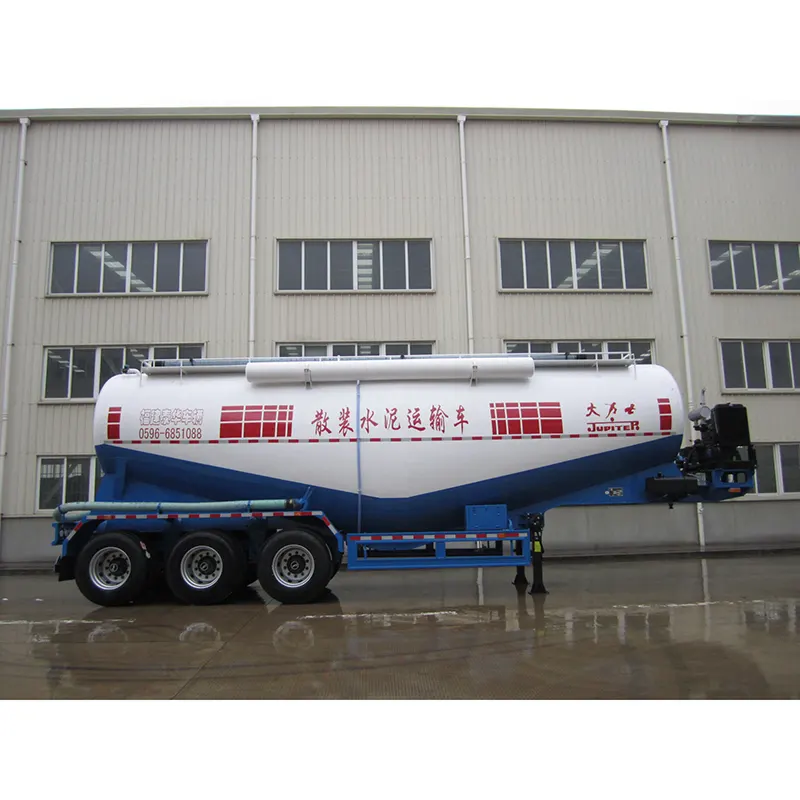

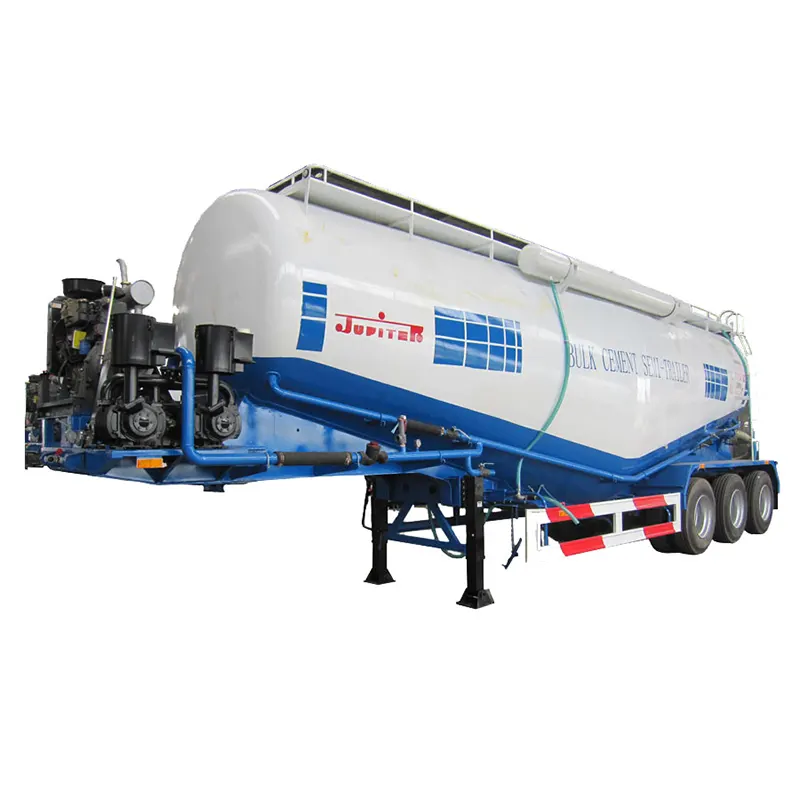

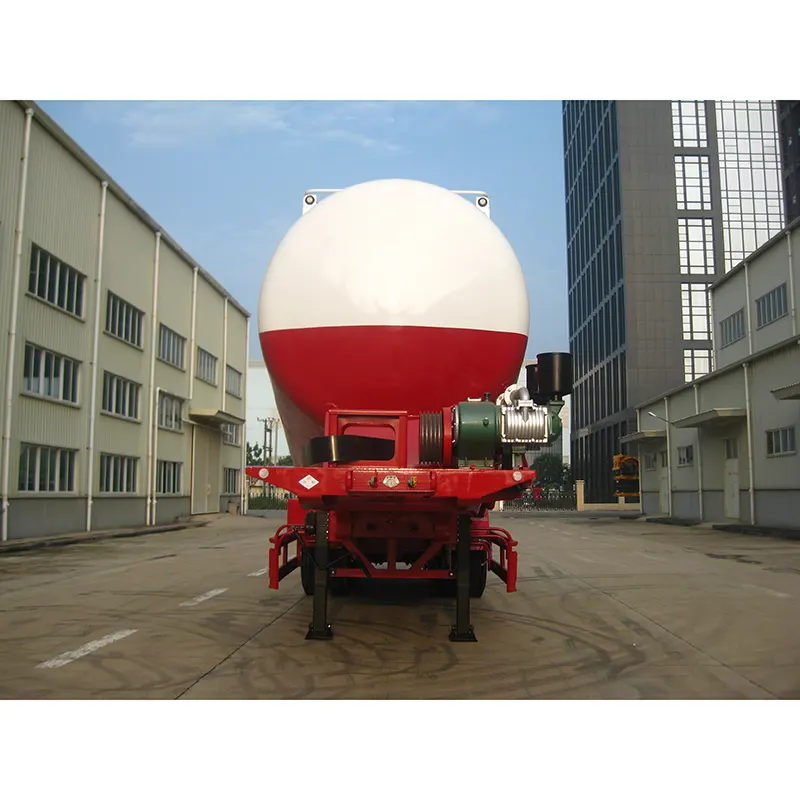

45cbm molem Cement Silo Tanker Semi Trailer V Type cum 42kw Power System

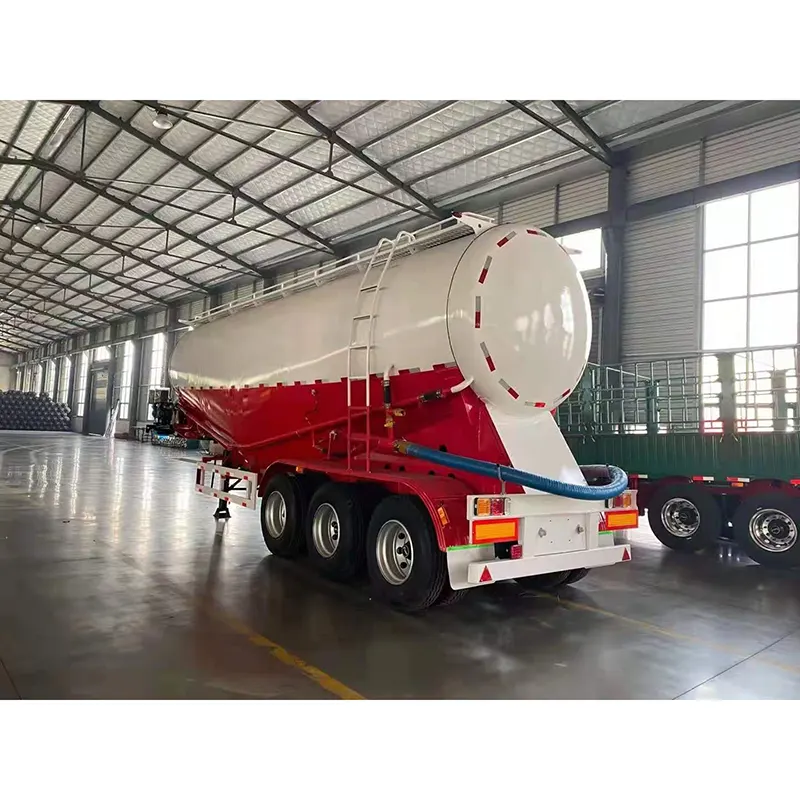

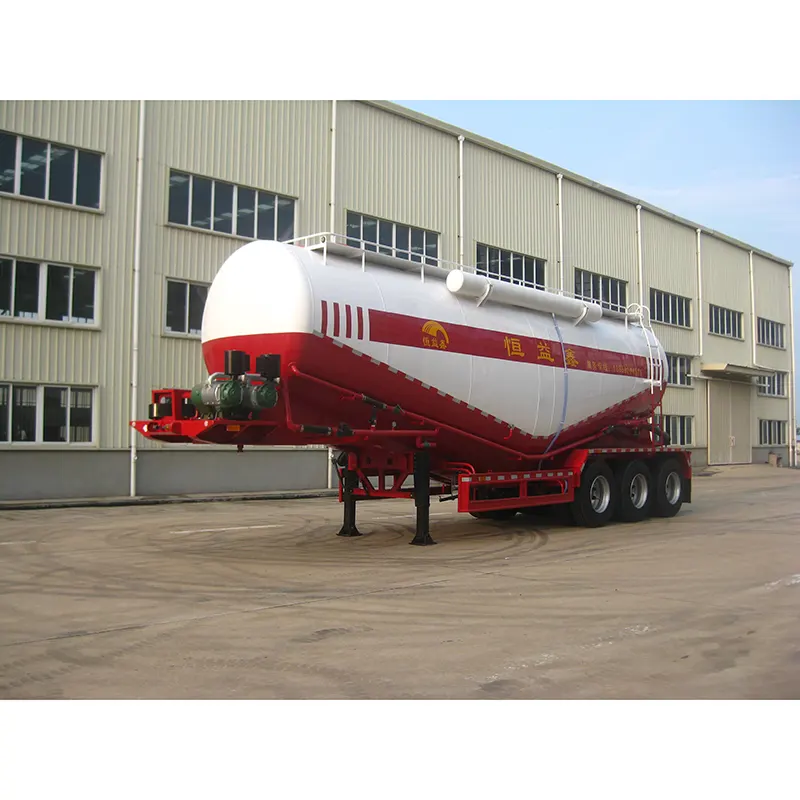

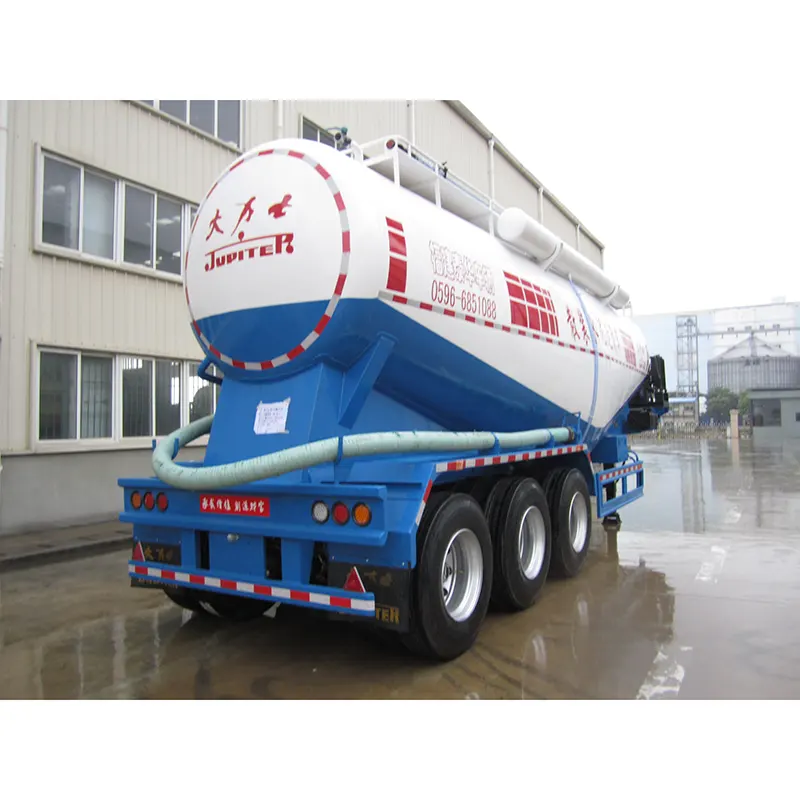

45CBM 3 Axles Bulk Cement Carrier Semi-trailer

Pluma:

Portare mole cementum Ah、Powder

Dimension(L*W*H);

11600*2500*3700mm

Tabula principalis:

Gravis pietas et extra firmitatem consilio; Q345B ferrum carbonis offensionis humilem alte tensibile optans; Arcus iuncta a eget arcu processus submerge me

Exemplar:

JPT9408GSN

Materia

Chalybe

aluminium

No. axis:

3

Capacitas(CBM);

30-45CBM (consuetudo constructa)

Tare pondus (kgs);

8,500-11.000kgs

6,000-7,000kgs

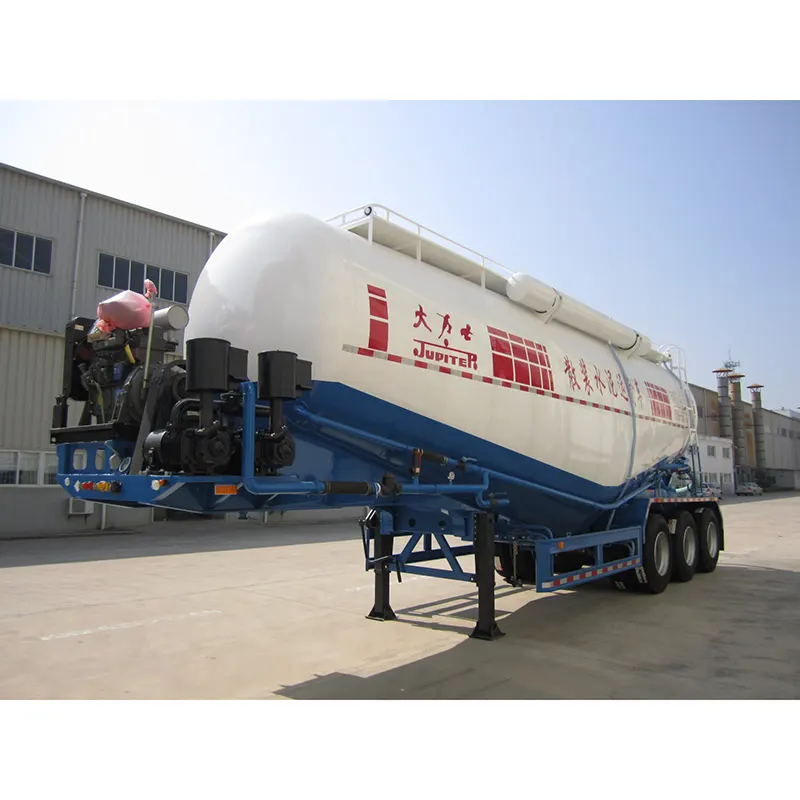

Diesel Engine

WeiChai Huafeng 4100 40KW

Caeli compressor

WBF-10/2

Kingpin:

Mundus clarus JOST notam fulmen-in/iuncta type 3.5"/2"

Portum calces:

JOST notam duos celeritate manualis operationis XIX "

Tyrus magnitudine;

11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5

Magnitudo Rim:

8.25*22.5、9.00*22.5、11.75*22.5

Axem:

Original BPW-12T/ FUWA-13T

Suspensionis

Germania typus cum 12pcs foliorum orientium/Fuwa notam cum 8pcs foliorum fontium / suspensionis Airbag

Ratio fregit:

Dualis linea cum WABCO notam Re-6 subitis valvae Nullam, MBA notam cameram aeris T30/30, 46L piscinam aeris

Systema electricum:

Una unitas 24V 7-pin ISO vexillum nervus; fracto lumine, lumen converte, lumen reverso, latus leve, pondero, lumen nebulae; unus paro of VI-pin vexillum funem

Continens comas

12(pro 1x20GP,2X20GP,1X40HQ)

Pictura:

S.A.2.5standard sandblating; Duae tunicae anti- corrosionis primae; una tunica metam pictura

Accessorium:

Unum instrumentum cistae; unus paro of vexillum instrumentum

trailers aedificare possumus secundum consilium et requisitionem emptoris
